DESCRIPTION
Performance

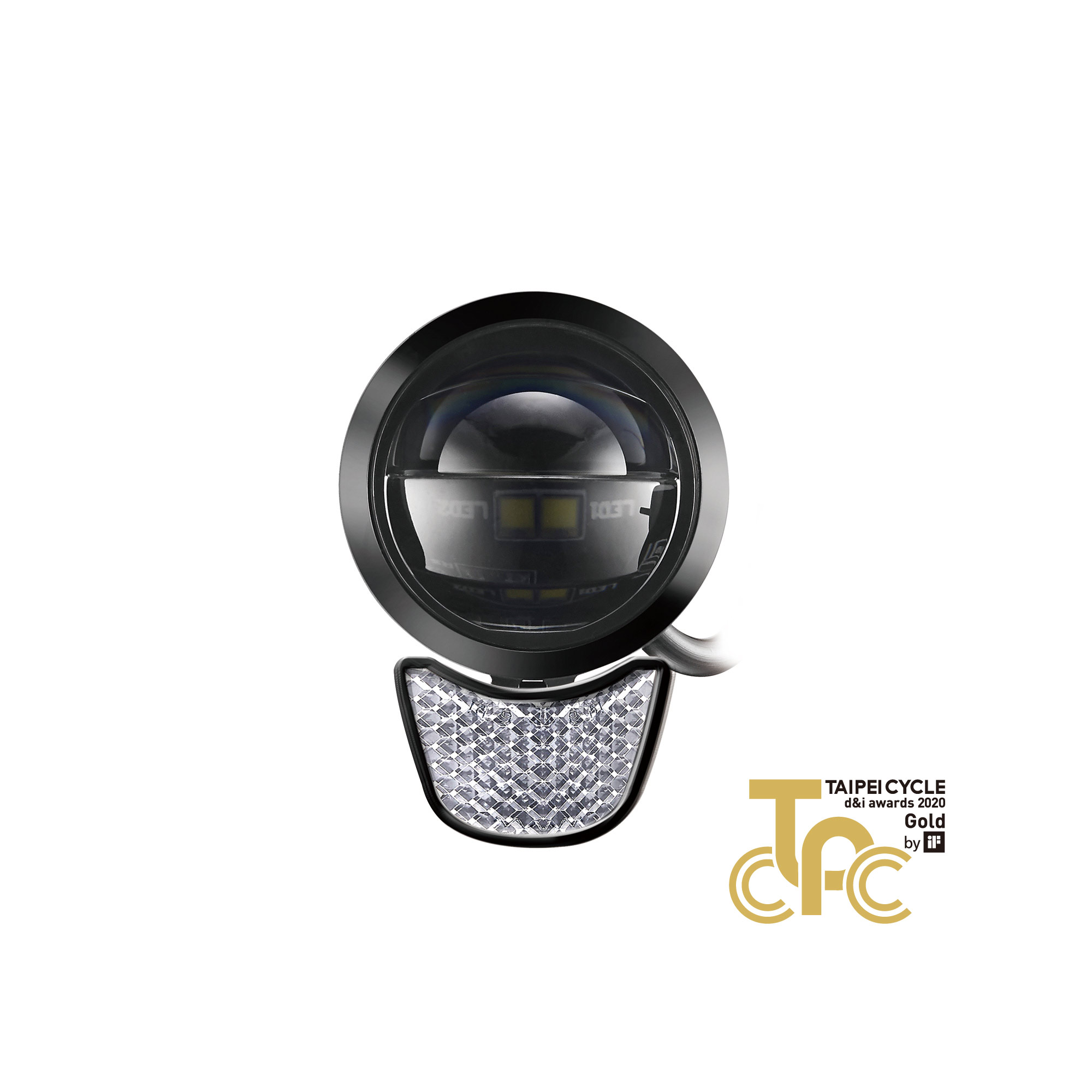

Litemove SE-150 headlight provides 8m wide and up to 240m distance of beam visibility ahead, giving electric bike riders greater visibility while on trails, or in dark areas.
Small & Compact
With a size of a match box, you can easily mount them on stem/ fork or under basket without any interference to other components
Mounting
SE-150 provides 3 different mounting position- fork (down holder)/ stem front (up holder)/ handlebar (side holder). Please select the one that meets your mounting preference before purchasing.
Check for compatible bracket/mount
Note:
- This headlight can ONLY be charged through 5 to 16V DC power
- Do not charge via an AC power source (e.g. a dynamo)
- Connecting to power supplies above the voltage limit may cause damage to the light
- The light does not feature a switch, It is controlled via the e-bike system
SPECIFICATION
[/row]
| Model Name | SE-150 |
| Model No. | HKSE150D/ HKSE150U HKSE150R/ HKSE150L |
| Light Output | 150 Lux |
| Optical Technology | MTi |
| Light Source | LED *2 |
| Input Voltage (DC) | 5 ~ 16V |
| Power Consumption | 7.2W |
| Cable Diameter | ø4mm |
| Cable Length | 450mm/1400mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -25 ~ +70 |
| Material | Aluminum |
| Weight (et. cable) | 91g |
| Dimension (WxHxL) | ø43.5 x 53mm |
| Reflector (Optional) | RF1/RFD |
| Compliance | RoHS/CE/Prop 65 |
| Type of Approval | StVZO-K & ISO Compliance |
| Approval Number | ~ K1698 |
VIDEO
BOSCH Motor
BROSE Motor
SHIMANO Motor
SYSTEM COMPATIBILITY
System Compatibility- Download
